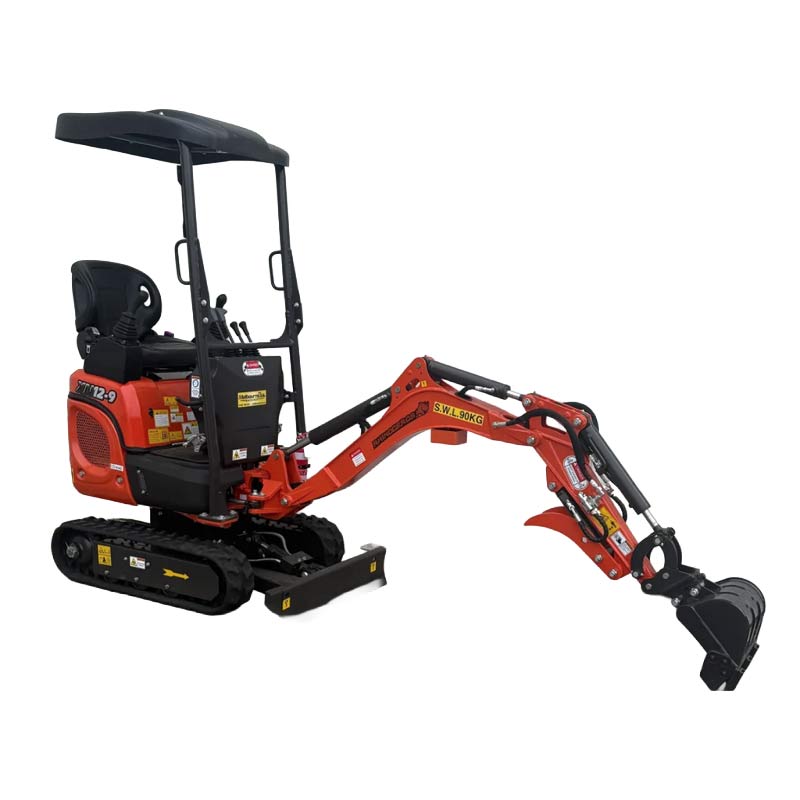

XN12-9 Rhinoceros 1.2T Mini Excavator

BASE PACKAGE

• 380GP Bucket
• Fire Extinguisher
• Toolbox
• Machine and Engine Operation Manuals

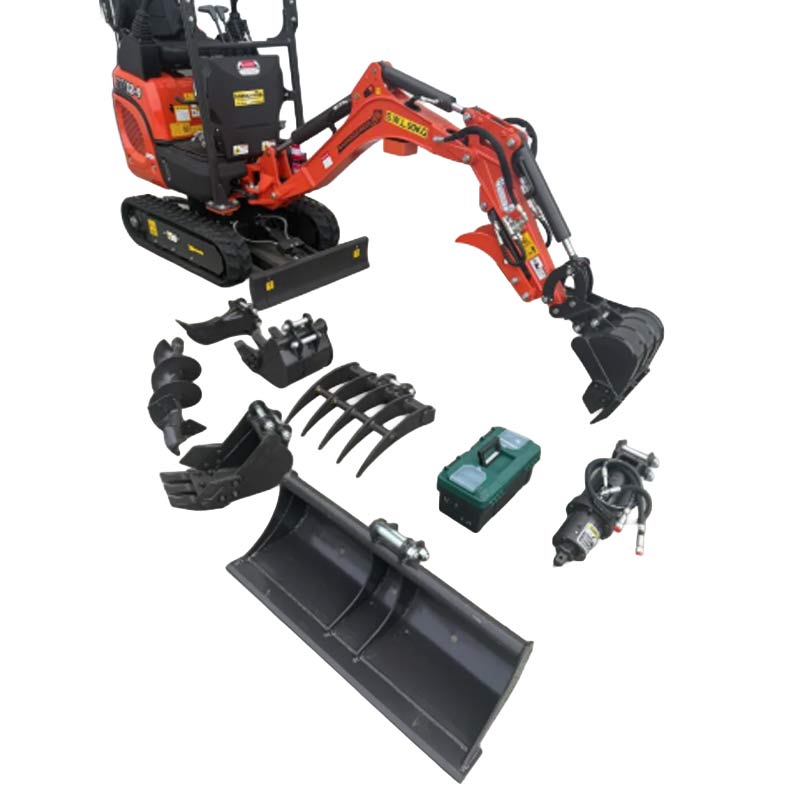

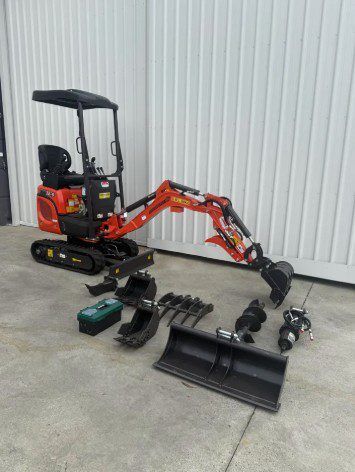

FULL ATTACHMENT PACKAGE

• Manual Quick Hitch
• Hydraulic Thumb Grab
• Auger Drive Unit
• 200 mm Auger
• Ripper
• Rake
• 200 mm GP Dig Bucket – with 3 Digging Teeth
• 300mm GP Dig Bucket – great for services

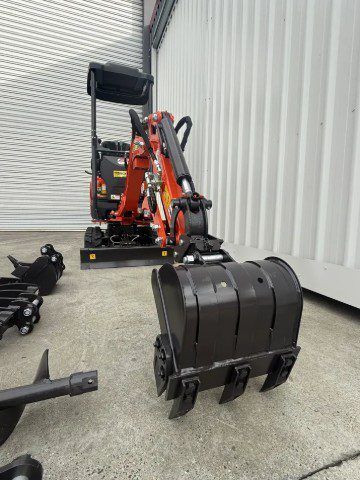

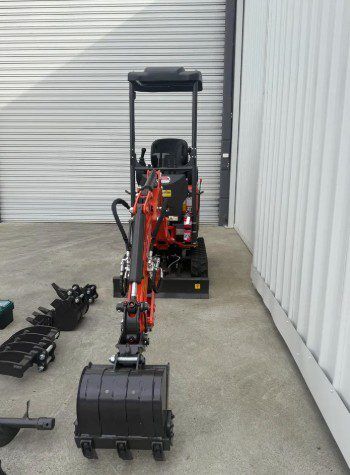

• 380 mm GP Dig Bucket – with 5 Digging Teeth
• 900mm Mud Bucket – with scalloped sides to compliment the grab
• Toolbox
• Fire Extinguisher
• Engine Manual
• Excavator Operation Manuals

Machine Overview

• Model: XN12-9 Rhinoceros
• Operating Weight: 1200 kg
• Bucket Capacity: 0.02m³
• Working Type: Excavator
• SWL 90KGS

Engine Options

• Model: Kubota D722
• Displacement: 0.719L
• Rated Output: 10.2kW @ 2500rpm
• Max Torque: 42.9Nm @ 2000rpm

Performance

• 2 Speed Tracking (High/Low): 1.5 km/h – 2.3 km /hr
• Slewing Speed: 11 rpm
• Maximum Grade Ability: 30%
• Ground Pressure: 31.56 – 31.67 kPa
• Pump Type: Gear pump
• Working Pressure: 16 MPa
• Flow Rate: 16.25 – 16.9 L/min

Fuel & Hydraulic Capacity

• Fuel Tank Capacity: 11L
• Hydraulic Oil Tank Capacity: 16L
• Cooling / System: Hydraulic system with gear pump configuration

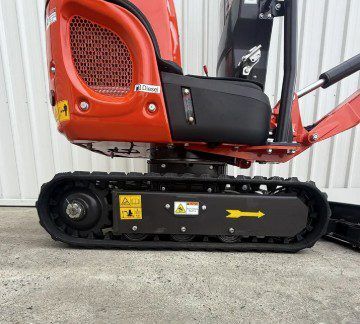

Undercarriage

• Track Type: Rubber
• Track Width: 180mm
• Track Height: 320mm
• Tension System: Tightening cylinder
• Material: Heavy-duty rubber tracks

Overall Dimensions (mm)

• Wheel Track: 910mm
• Overall Crawler Length: 1235mm
• Platform Ground Clearance: 460mm
• Platform Tail Slewing Radius: 660mm
• Chassis Width: 800 – 950mm (expandable)
• Transport Length: 2170mm / 2850mm
• Seat Ground Clearance: 1520mm
• Overall Height: 2270mm
• Boom Slew Angle: Right 50° / Left 55°

Working Range (mm)

• Max Digging Radius (Ground): 3040mm
• Max Digging Radius: 3135mm
• Max Digging Depth: 1580mm
• Max Digging Height: 2620mm
• Max Dumping Height: 2000mm
• Max Vertical Digging Depth: 1580mm
• Minimum Swing Radius: 1510mm
• Dozer Blade Lift Height: 140mm
• Dozer Blade Digging Depth: 200mm
