XN10-8 Rhinoceros 1.0 T Mini Excavator

3 BUCKET PACKAGE

• Manual Quick Hitch
• Hydraulic Thumb Grab
• 200 mm GP Dig Bucket
• 380mm GP Dig Bucket
• 900mm Mud Bucket with scalloped sides
• Toolbox
• Fire Extinguisher fitted to machine
• Engine Manual
• Excavator Operation Manuals

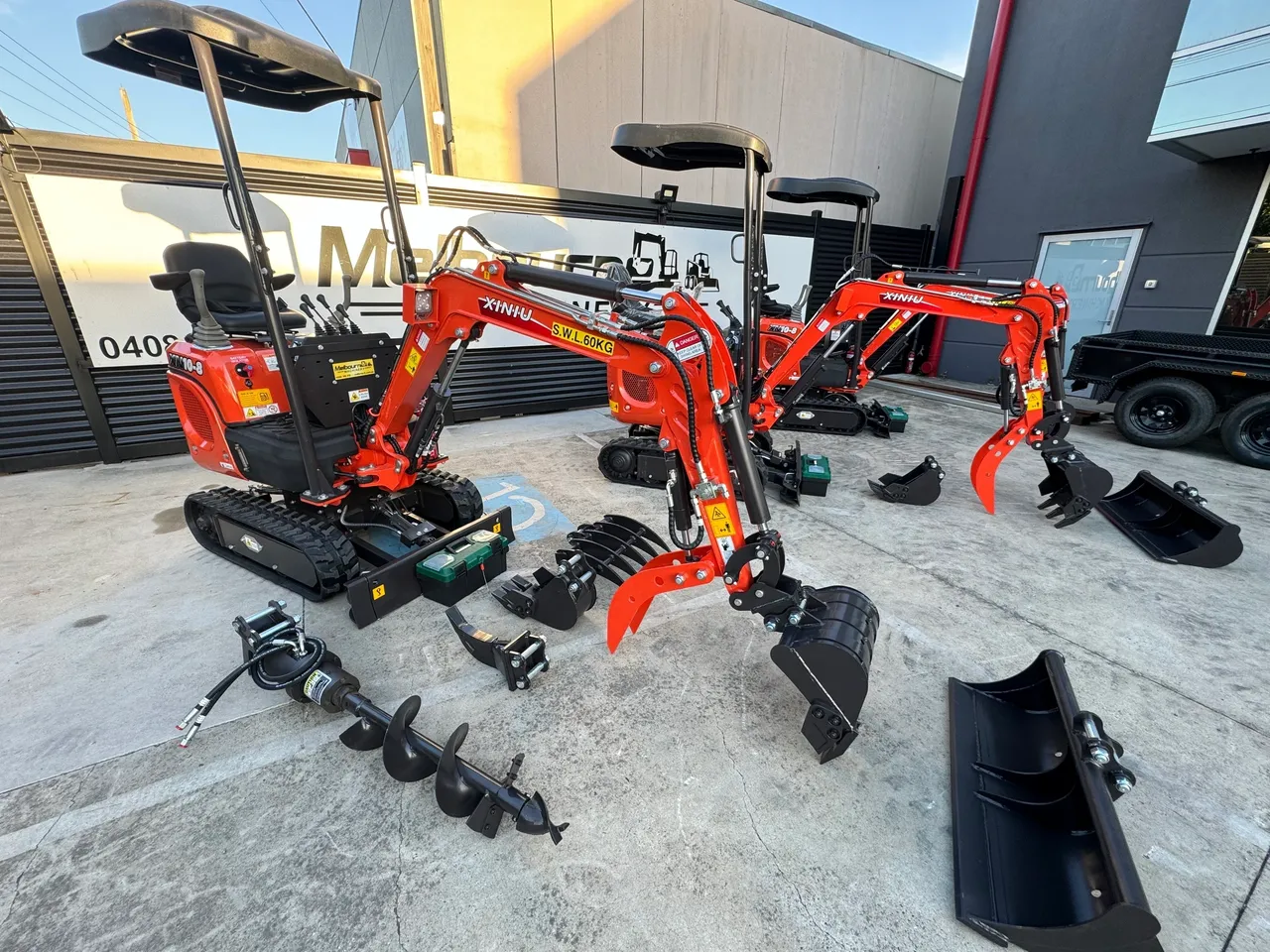

FULL ATTACHMENT PACKAGE

• Manual Quick Hitch
• Hydraulic Thumb Grab
• Auger Drive Unit
• 200 mm Auger
• Ripper
• Rake
• 200 mm GP Dig Bucket
• 380mm GP Dig Bucket
• 900mm Mud Bucket with scalloped sides
• Toolbox
• Fire Extinguisher
• Engine Manual
• Excavator Operation Manuals

XN10-8 Mini Excavator Specifications

Machine Details

• Operating Weight: 1,010 kg
• Bucket Capacity: 0.02 m³
• Working Device Type: Excavator

Engine Performance

• Engine Model: Koop 192
• Displacement: 0.499 L
• Rated Power: 7.6 kW @ 3000 rpm
• Max Torque: 25 N·m @ 2860 rpm

Speed & Mobility

• Travel Speed: 1.3 km/h
• Slewing Speed: 11 rpm
• Gradeability: 30%

Tracks & Undercarriage

• Track Type: Rubber
• Track Width: 180 mm
• Track Height: 320 mm
• Ground Pressure: 30.95 kPa
• Tension System: Cylinder tightening

Hydraulic System

• Pump Type: Gear pump
• Working Pressure: 16 MPa
• Flow Rate: 19.5 L/min
• Hydraulic Tank Capacity: 16 L

Fuel Capacity

• Fuel Tank: 11 L

Dimensions (mm)

• Overall Length (Transport): 2170 / 2850
• Overall Height: 2195
• Chassis Width: 800 – 950
• Track Length: 1235
• Wheel Track: 910
• Platform Ground Clearance: 460
• Tail Swing Radius: 660

Working Range

• Max Digging Depth: 1580 mm
• Max Digging Radius: 3135 mm
• Max Digging Height: 2620 mm
• Max Dump Height: 2000 mm
• Min Slewing Radius: 1510 mm

Blade Performance

• Max Blade Lift Height: 140 mm
• Max Blade Dig Depth: 200 mm

Boom Swing Angle

• Left: 55°
• Right: 50°

Important Note

All specifications are based on operation on level, solid ground. Performance may vary depending on terrain, slope, and working conditions.
