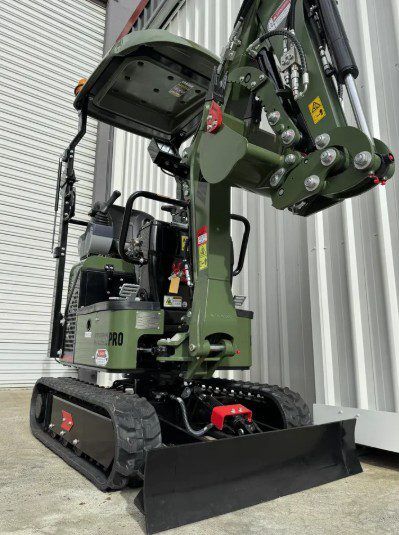

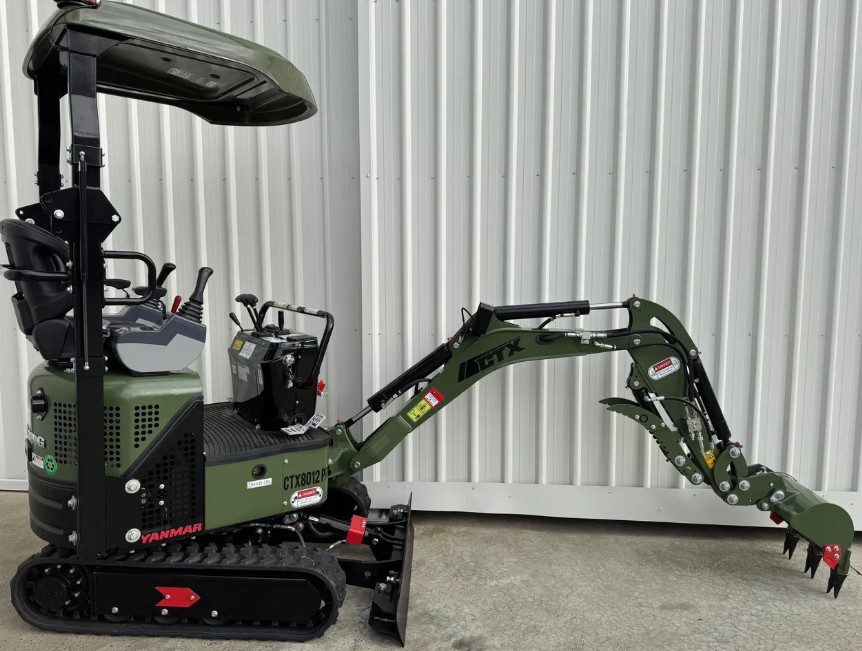

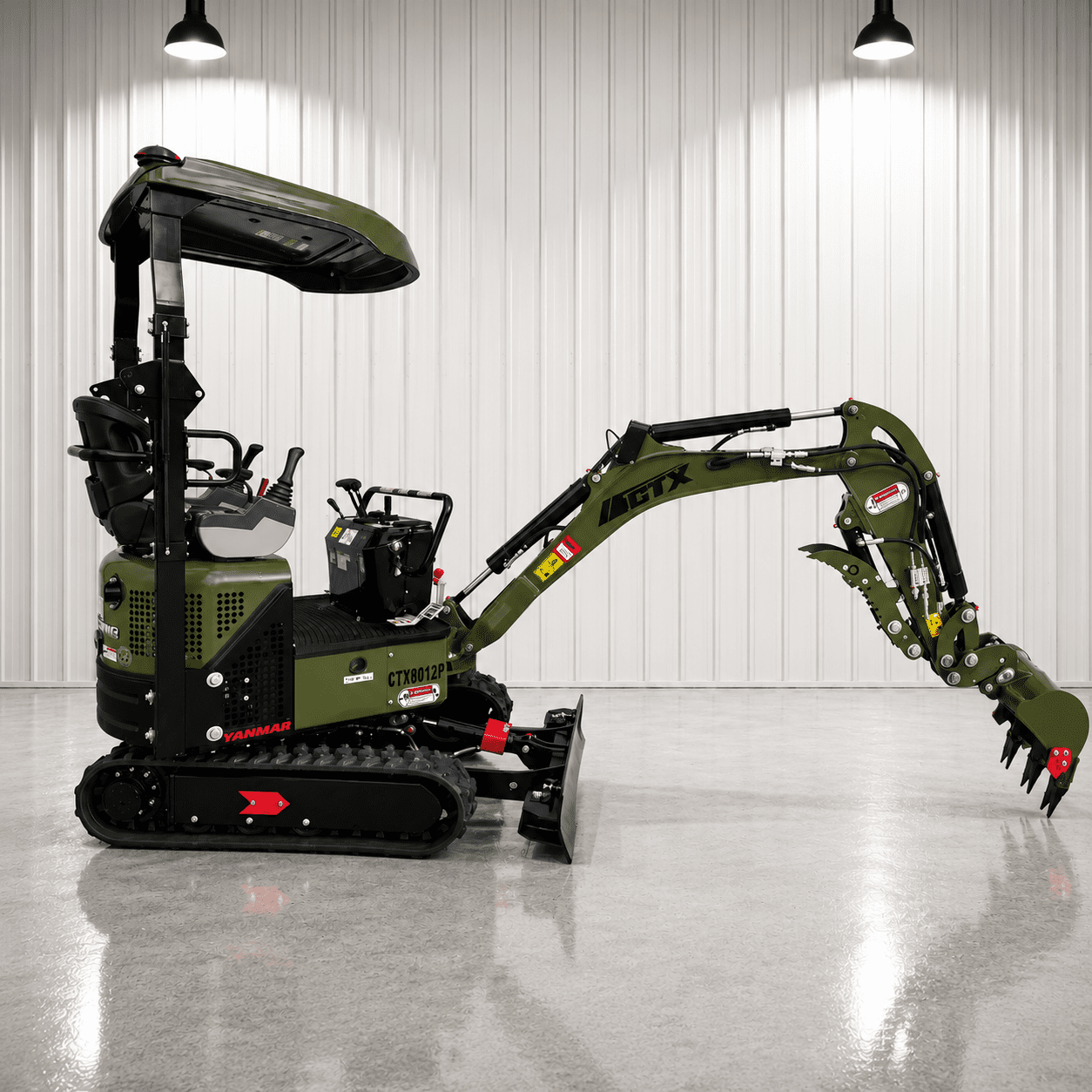

CTX8012 Pro PLUS 1.4 T Haihong Mini Excavator

Machine Overview

• Model: CTX8012 PRO Plus
• Operating Weight: 1,400kg
• Bucket Capacity: Approx. 0.03m³
• Working Type: Excavator
• SWL 90kgs

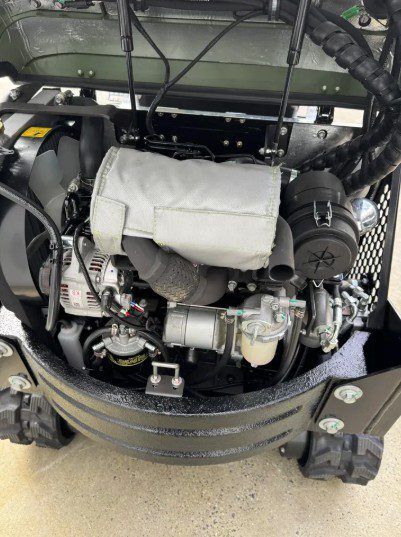

Engine

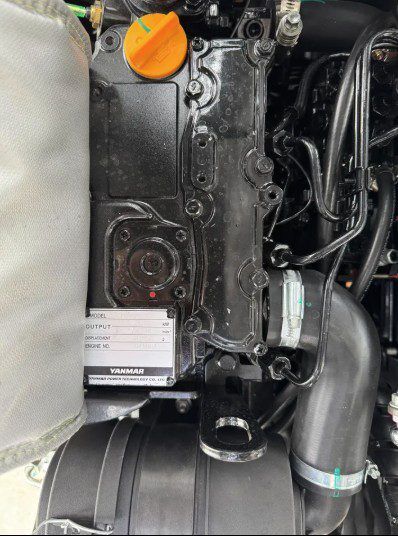

• Engine Type: Yanmar 3TNV70 3-cylinder engine
• Fuel Type: Diesel
• Cooling System: Water-cooled
• Starting System: Electric start

Hydraulic System

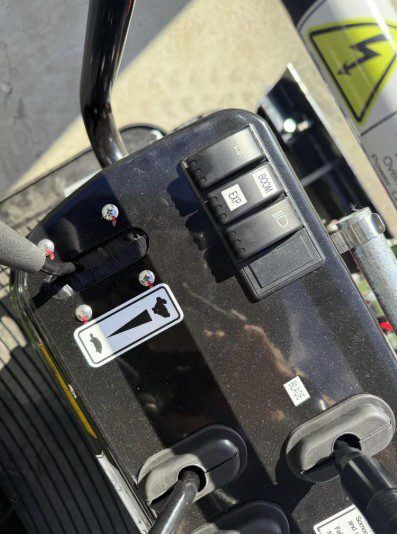

• Control Type: Pilot joystick controls
• Hydraulic Pump Type: DUAL PISTON VARIABLE DISPLACEMENT PUMP
• Working Pressure: Approx. 16 MPa
• Auxiliary Hydraulics: Fitted for attachments
• Quick Couplers: Included on boom arm for fast attachment changes

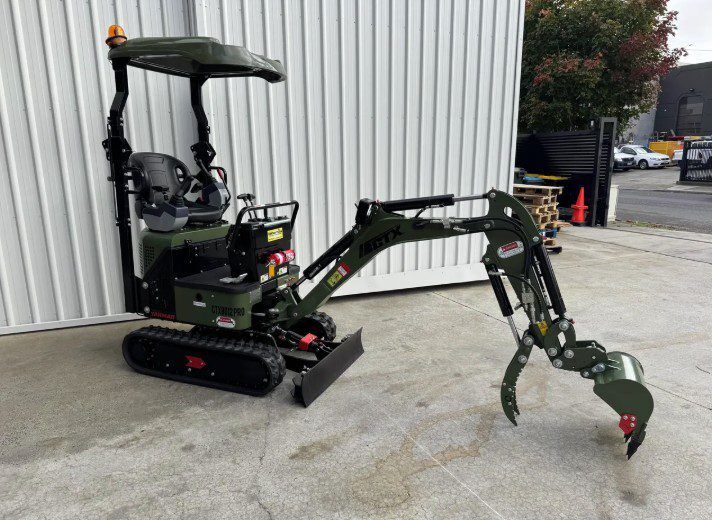

• Hydraulic Thumb: Standard (foot pedal operated)

Performance

• Travel Speed: 2-speed travel system
• Swing System: Full 360° rotation
• Gradeability: Approx. 30%
• Maximum Digging Force: Suitable for light to medium excavation and trenching work
• Operation Type: Smooth pilot-controlled hydraulic system for precision work

Undercarriage

• Track Type: Heavy-duty rubber tracks
• Track Width: Approx. 800mm – 950mm (expandable design)
• Track System: Reinforced rollers for improved stability
• Track Tension: Hydraulic or grease-adjusted tension system

Overall Dimensions

• Transport Length: Approx. 2800mm
• Overall Width: Approx. 800mm – 950mm (expandable)
• Overall Height: Approx. 2300mm
• Ground Clearance: Approx. 400mm
• Tail Swing Radius: Compact zero/minimal tail swing design

Working Range

• Max Digging Depth: Approx. 1700mm – 1900mm
• Max Digging Height: Approx. 2600mm – 2800mm
• Max Dumping Height: Approx. 1900mm – 2100mm
• Max Digging Radius: Approx. 3000mm+
• Minimum Swing Radius: Tight access capable for confined spaces

BASE PACKAGE

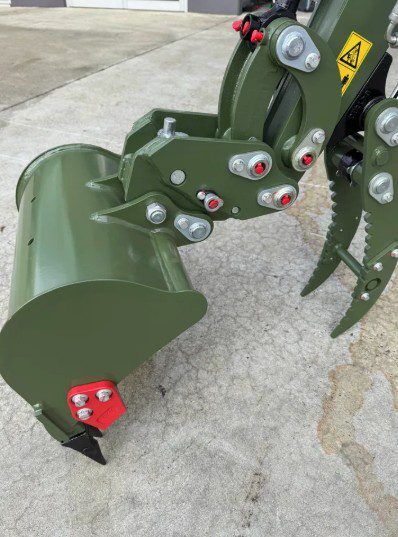

• 450mm GP BUCKET
• Machine/Engine Manuals

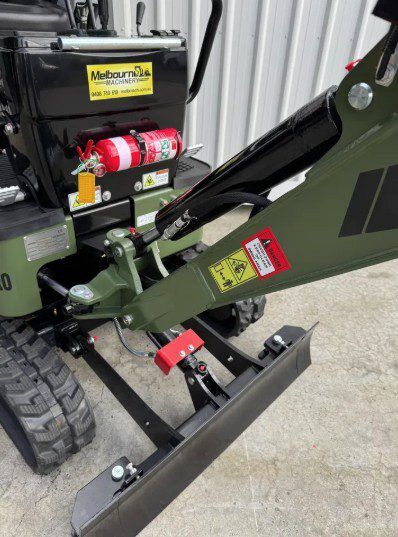

• Fire Extinguisher and Safety Decals

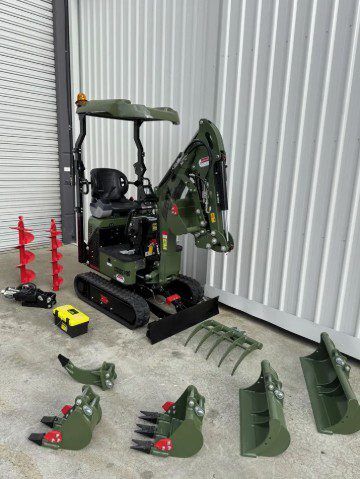

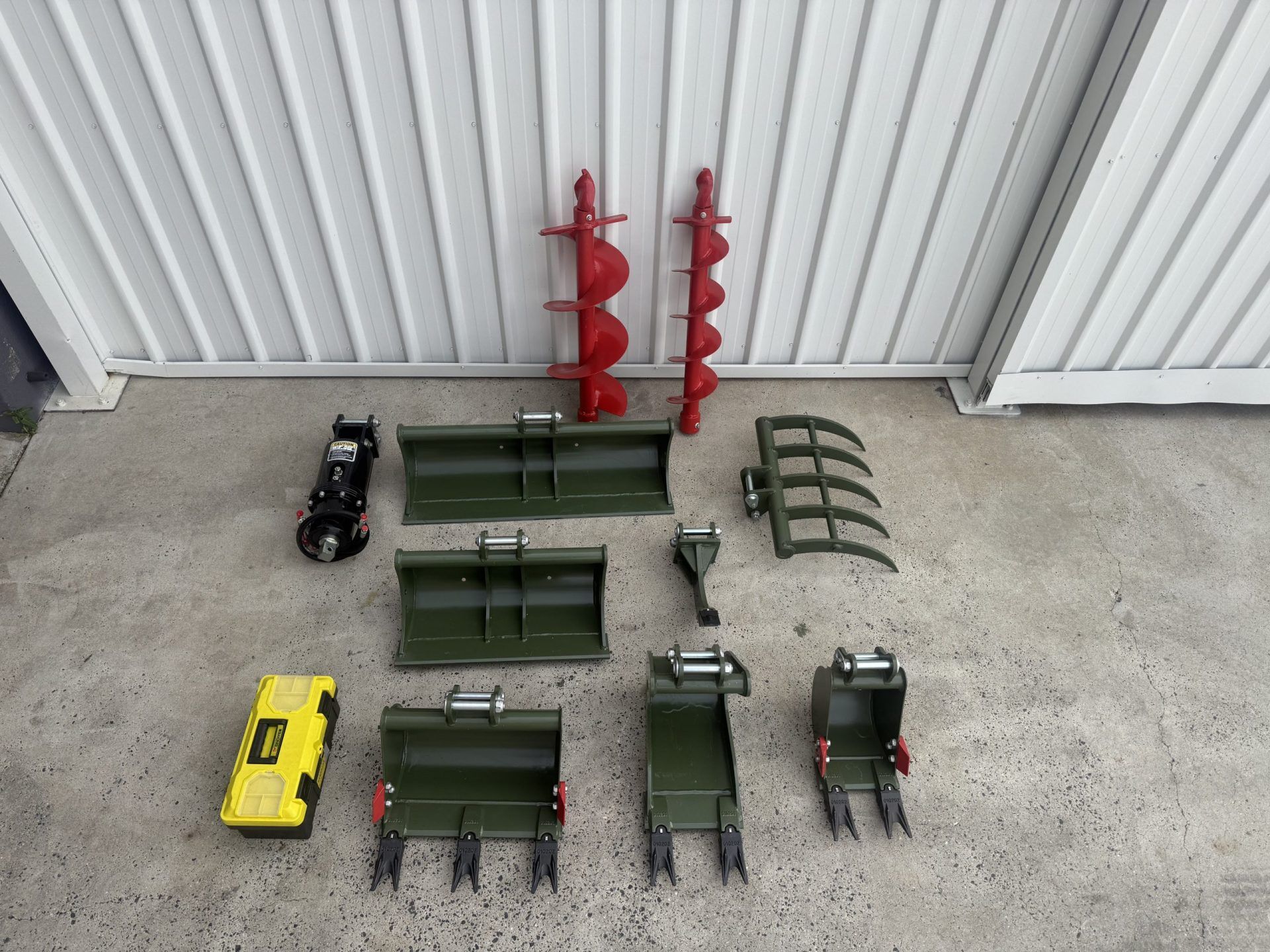

FULL ATTACHMENTS PACKAGE

The CTX8012 Pro Plus 1.4 T Haihong Mini Excavator package comes with a comprehensive set of attachments to suit various applications:

• Spring Hitch
• Hydraulic Thumb (mounted on machine)
• Auger Drive
• 200mm Auger
• 300 mm Auger
• Ripper
• Rake
• 200 mm General Purpose Digging Bucket

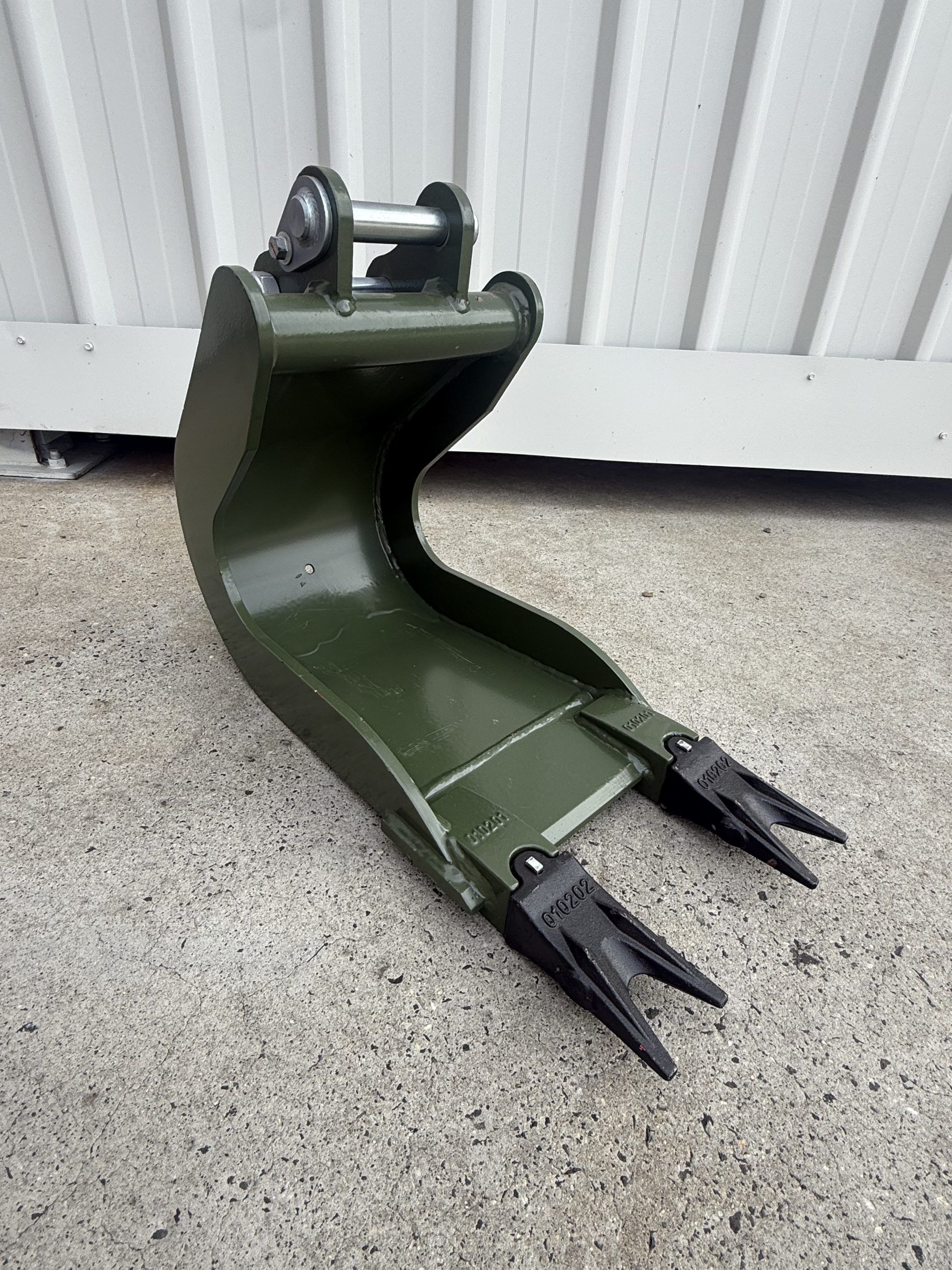

• 300mm Trench Muck Bucket

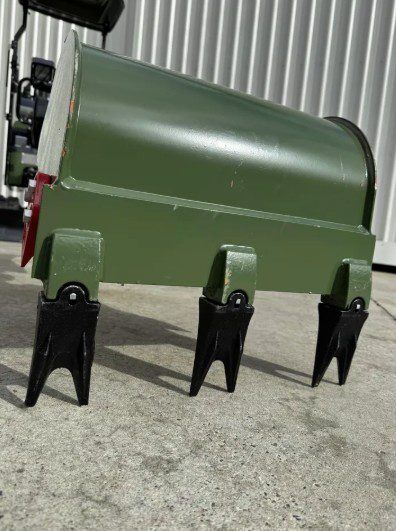

• 450 mm General Purpose Digging Bucket with Tiger Teeth
• 600 mm Mud Bucket
• 900 mm Mud Bucket with scalloped edges
• Blade Extensions

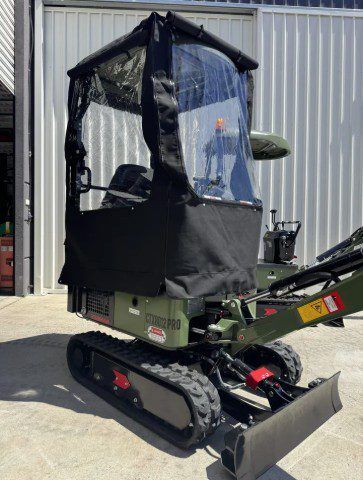

• All Weather Cover – promotion while stocks last
• Toolbox
• Fire Extinguisher
• Machine Manuals
