800mm Tilting Mud Bucket

Description

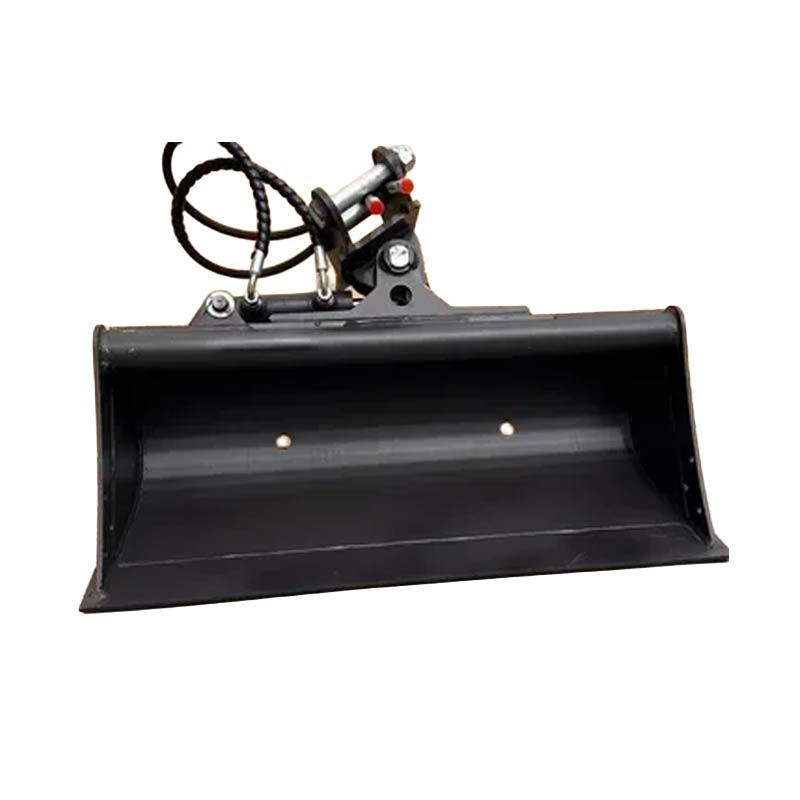

800mm Tilting Mud Bucket for 0.8T – 1.5T Excavators

The 800mm Tilting Mud Bucket is a versatile excavator attachment designed for precision grading, shaping, and finishing work. Ideal for landscaping, drainage, civil works, and site preparation, this bucket allows operators to work more efficiently without constantly repositioning the machine.

With hydraulic tilt functionality, the bucket can angle up to 40° to the right and 30° to the left, providing excellent control when working on slopes, edges, trenches, and uneven ground. This significantly improves accuracy and reduces time spent repositioning the excavator.

The wide 800mm profile makes it ideal for clean finishing passes and moving soft material such as soil, sand, and mud. It is a must-have attachment for operators who require flexibility and precision in tight or detailed work environments.

Built for durability and everyday site use, this tilting mud bucket is suited to a wide range of mini excavators and is designed to perform reliably across varied ground conditions.

Hitch Specifications:

• Pin Size: 25mm
• Centre to Centre: 90mm
• Distance Between Ears: 90mm

Tilt Range:

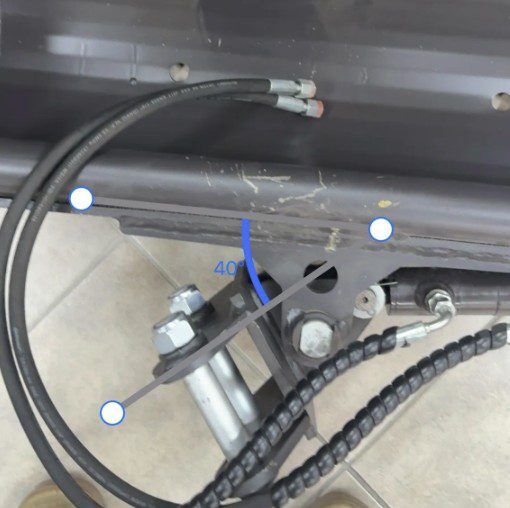

• 40° Right

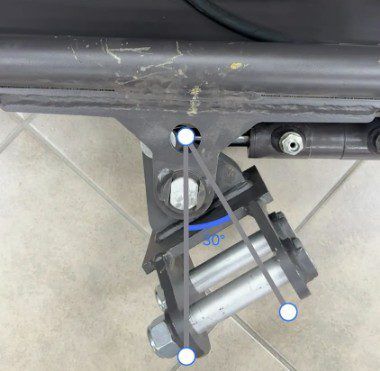

• 30° Left

Features:

• 800mm tilting mud bucket design
• Suits 0.8T – 1.5T excavators
• Hydraulic tilt for improved precision and control
• Ideal for grading, levelling, and finishing work
• Reduces need to reposition machine on slopes and edges
• Strong and durable construction for site use
• Perfect for landscaping, drainage, and civil applications
• Smooth operation for clean final finishes
