HOW TO
How to Measure Your Machine Compatibility
To ensure correct fitment, measure the following:
- Pin diameter (front and back pins)
- Pin centres (centre of front pin to centre of rear pin)
- Width between the ears (hitch mounting space – use the narrowest measurement)
Description

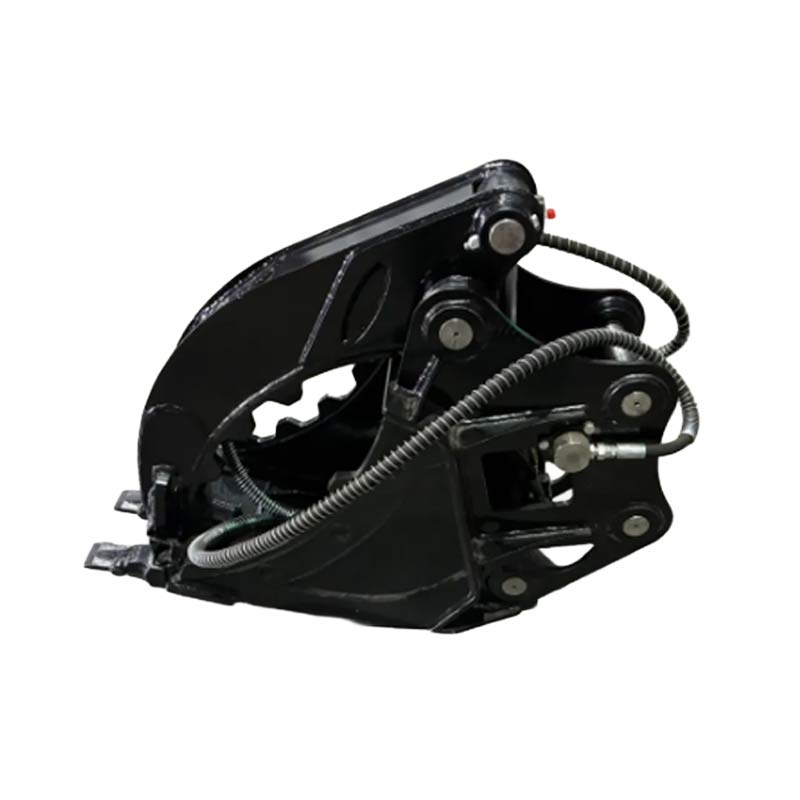

2.7 Ton Hydraulic Grab Bucket – Heavy Duty Material Handling Attachment
The 2.7T Hydraulic Grab Bucket is engineered for strength, control, and efficiency when handling a wide range of materials including timber, rocks, demolition waste, and general site debris.

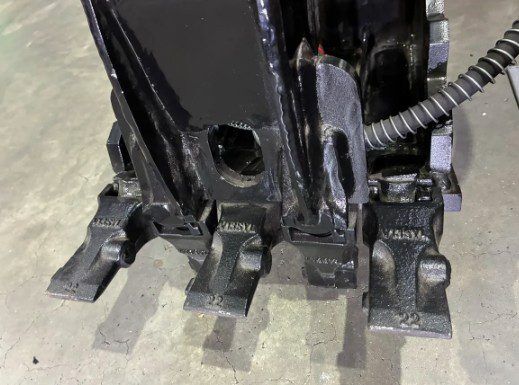

Built with a robust box plate construction and a five-finger interlocking grab design, this attachment delivers excellent grip strength and maximum opening capacity, allowing operators to securely handle irregular loads with confidence.

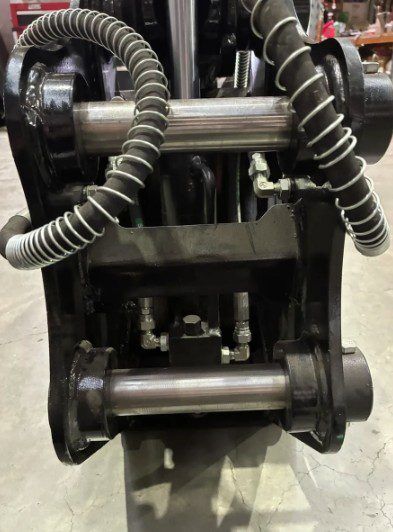

The single hydraulic ram system improves reliability, reduces maintenance requirements, and ensures smooth, consistent operation. The grab is also well-protected between the mounting ears for improved durability in demanding working environments.
Supplied with two hydraulic hoses fitted with half-inch flat-faced quick couplers, installation and removal is fast and simple, making it ideal for operators who frequently change attachments.
Dimensions
- Ear to Ear: 213mm
- Pin Size: 38mm
- Width Between Ears: 141mm
- Grab Width: 315mm
- Overall Length: 860mm
- Sidewall Thickness: 16mm
- Weight: 128kg
