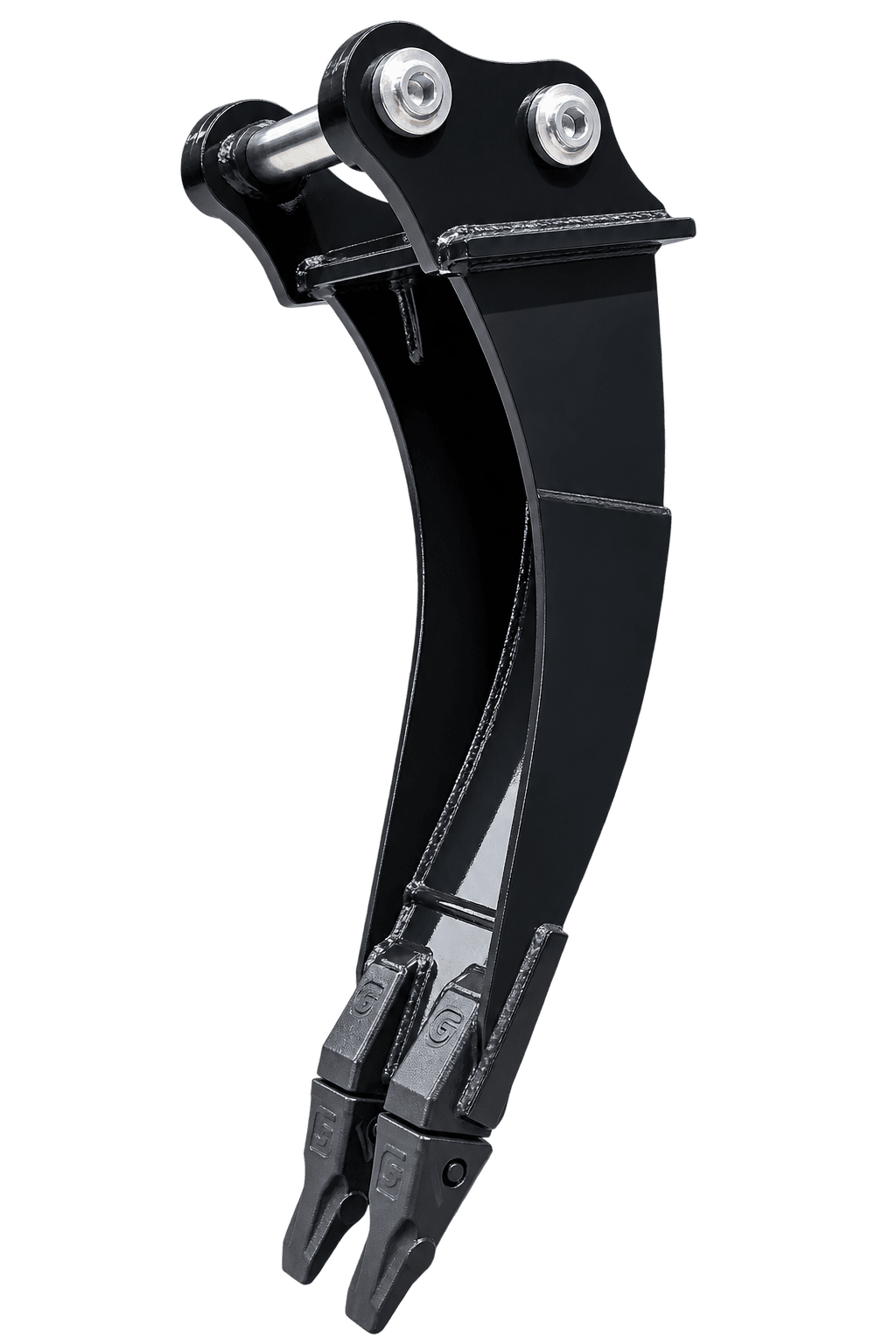

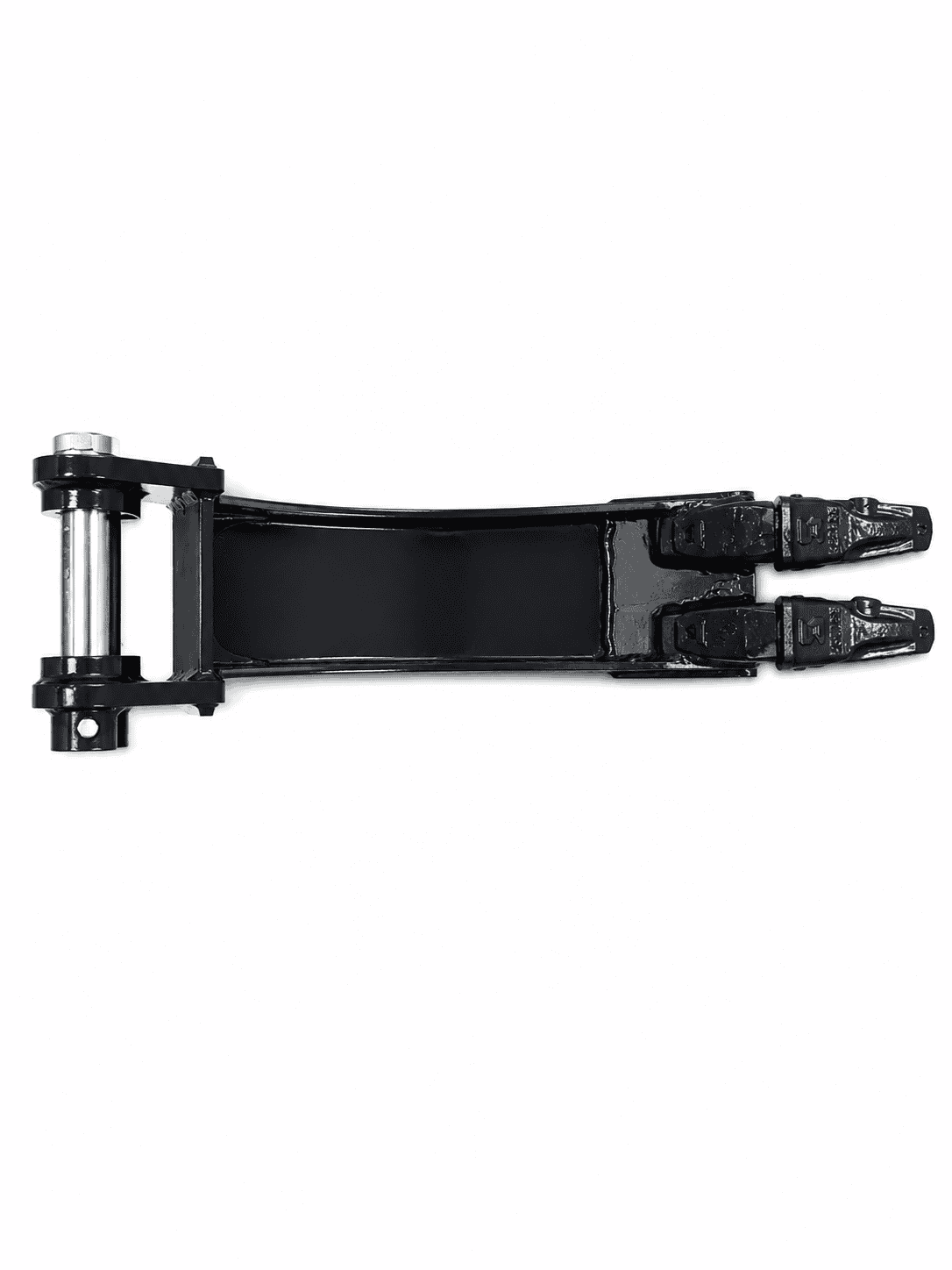

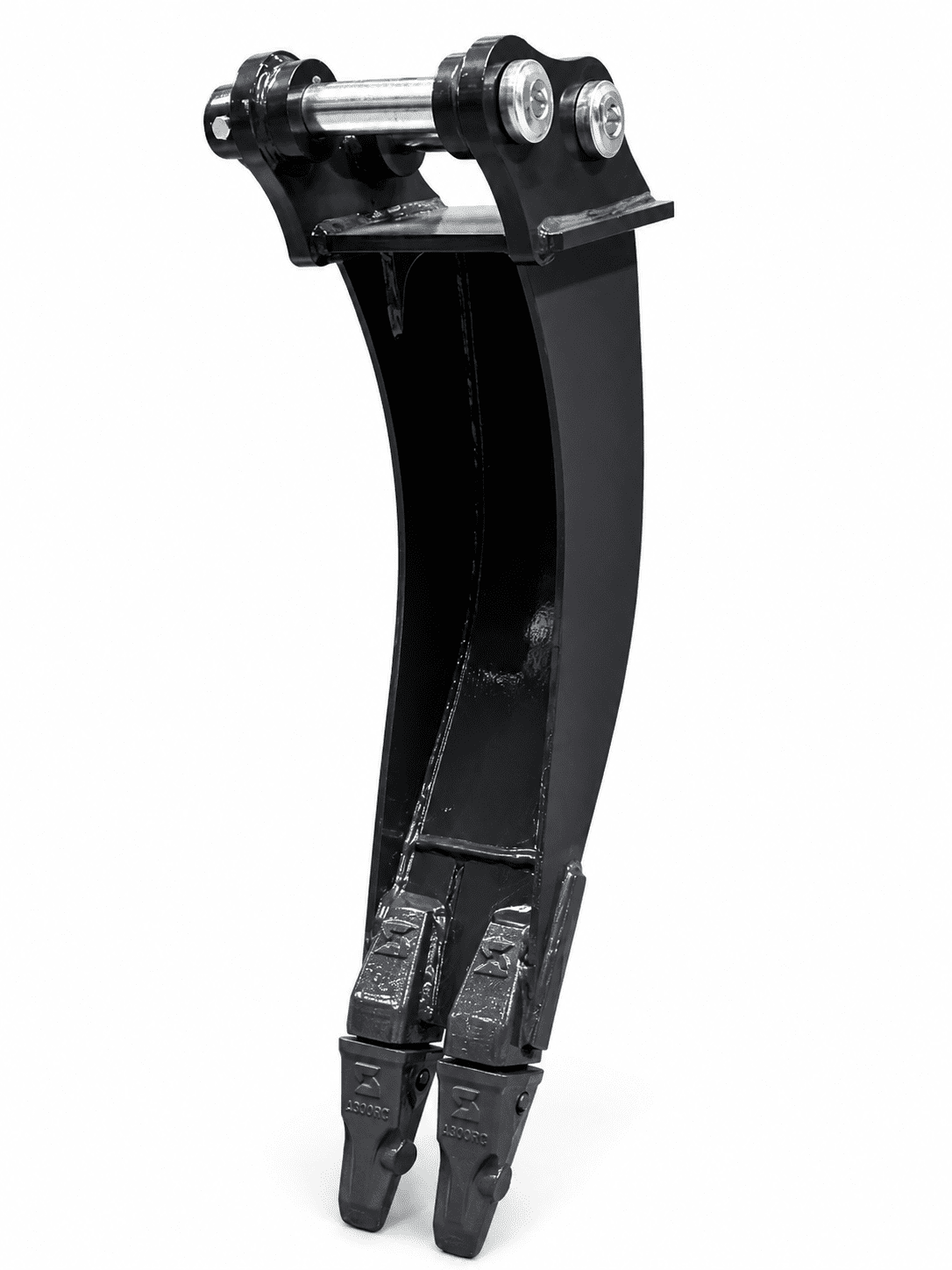

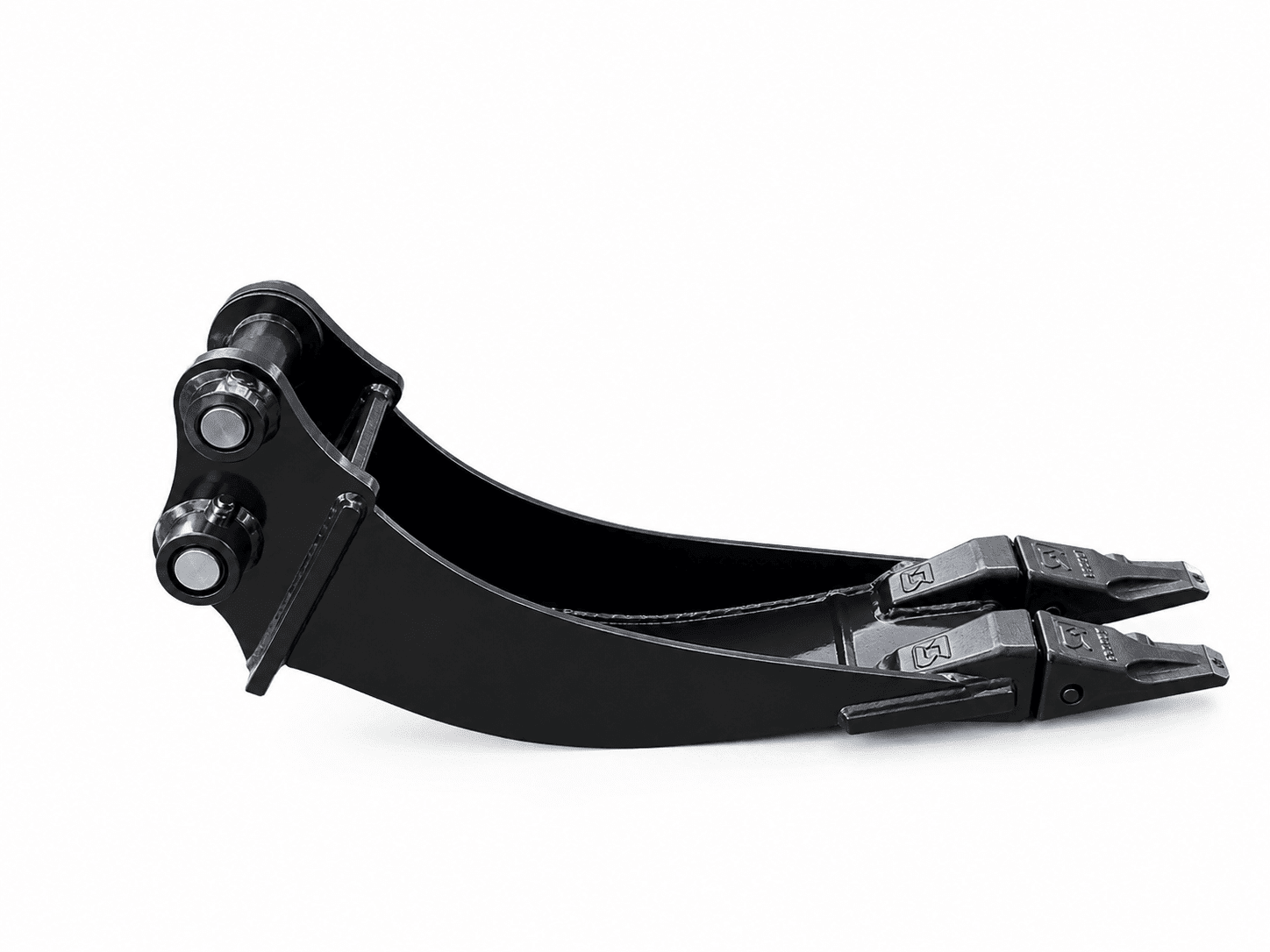

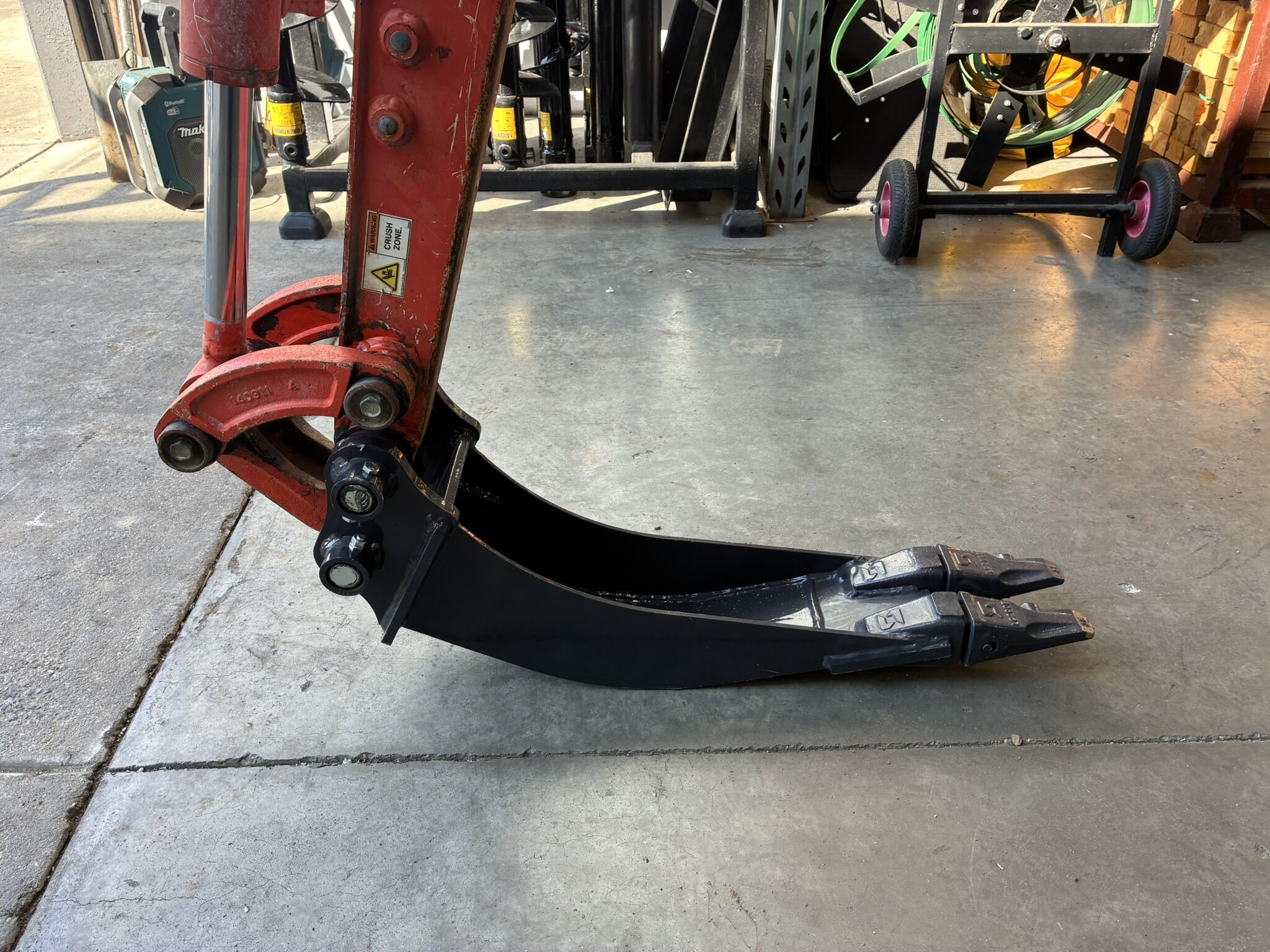

Deep Trench Buckets

Our Deep Trench Buckets are designed for digging narrow, deep trenches where a standard trenching bucket just doesn’t have the reach.

Instead of benching out the trench with a wider bucket and then coming back to cut it down, the longer design lets you get straight to the required depth and width. This means less material moved, less time on the machine and lower operating costs.

Features

• Longer Bucket Design – Gives you extra digging depth without needing to bench out the trench first.
• Shallow Bucket Profile – Reduces material build-up and makes the bucket easier to empty, especially in wet or sticky ground.
• Heavy-Duty Top Box – Built to handle the digging forces and provide strength and durability.
• Splayed Teeth – Improves tooth penetration while providing extra side clearance to reduce jamming in wet clay and loose material.
• Tapered Bucket Design – Keeps the sides of the bucket clear of the trench walls for smoother digging.
• Ideal for Wet Conditions – The longer, shallower profile helps material release from the bucket instead of sticking inside.

Suitable for:

• JCM Rover 1.8T
• Kubota U17-3

Hitch Dimensions

• Pin Size: 30mm
• Ear to Ear: 93mm
• Pin Width: 96mm

Bucket Dimensions

Width: 150mm

Height: 700mm

Built to Get the Job Done

The Deep Trench Bucket is a simple way to make narrow trenching faster and more efficient. By reducing the need for benching out, you spend less time moving unnecessary material and more time getting the job done.

A great option for plumbing, electrical, drainage, irrigation and other trenching applications where a narrow, deep trench is required.
